Focal Plane Arrays

High Performance in a Small Package   ___



At Santa Barbara Focalplane (SBF), Lockheed Martin’s infrared (IR) center of excellence, seeing is believing. SBF develops and manufactures focal plane arrays (FPAs) that deliver high-resolution imagery in real-time, integrated dewar cooler assemblies for high-performance sensors, and camera cores that offer big-sensor performance in compact and low-SWAP configurations.

SBF offers a diverse selection of off-the-shelf and custom-built FPAs. Our revolutionary nBn FPA and high-speed digital read-out integrated circuit (ROIC) technologies are the foundation of our advanced sensor offerings.

Focal Plane Arrays 02

Our proprietary nBn material enables FPAs to run “warmer” than traditional indium antimonide (InSb) solutions, delivering high performance in small packages—and improved product life and reliability. nBn is tunable from short to long wavelengths.
Focal Plane Array Photos and Videos   ___

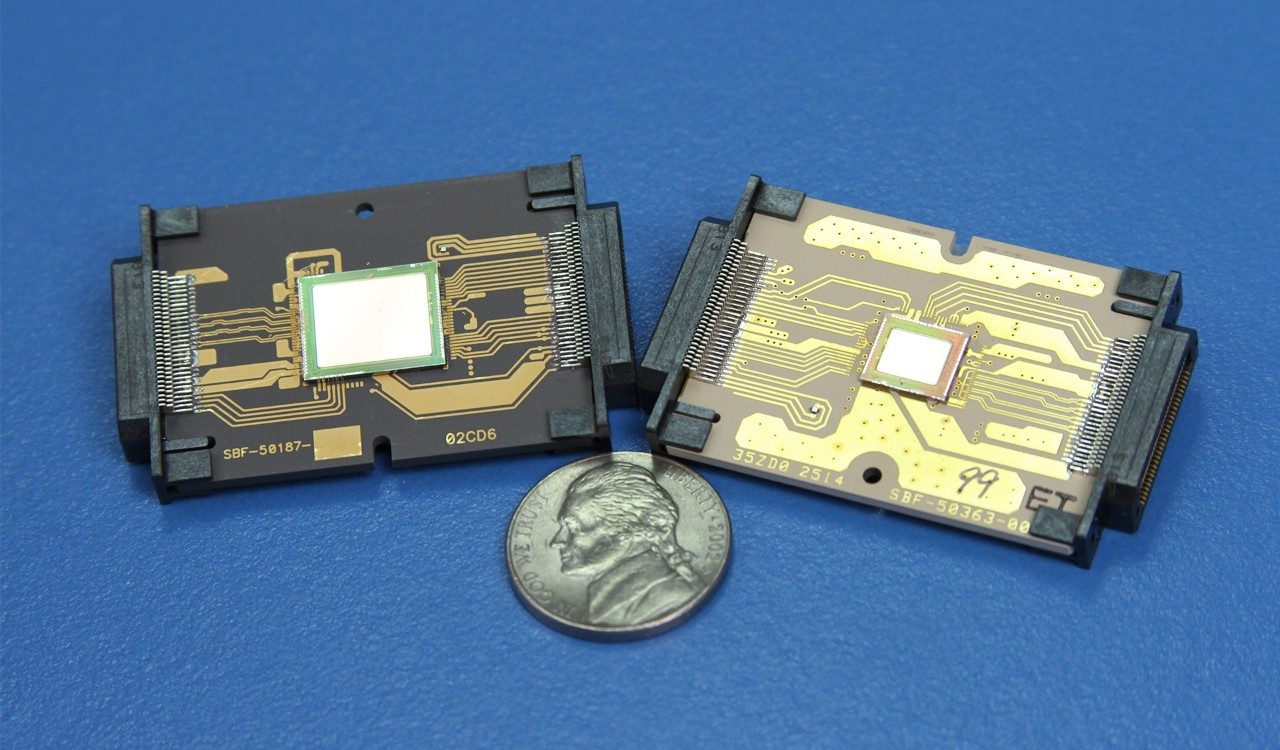

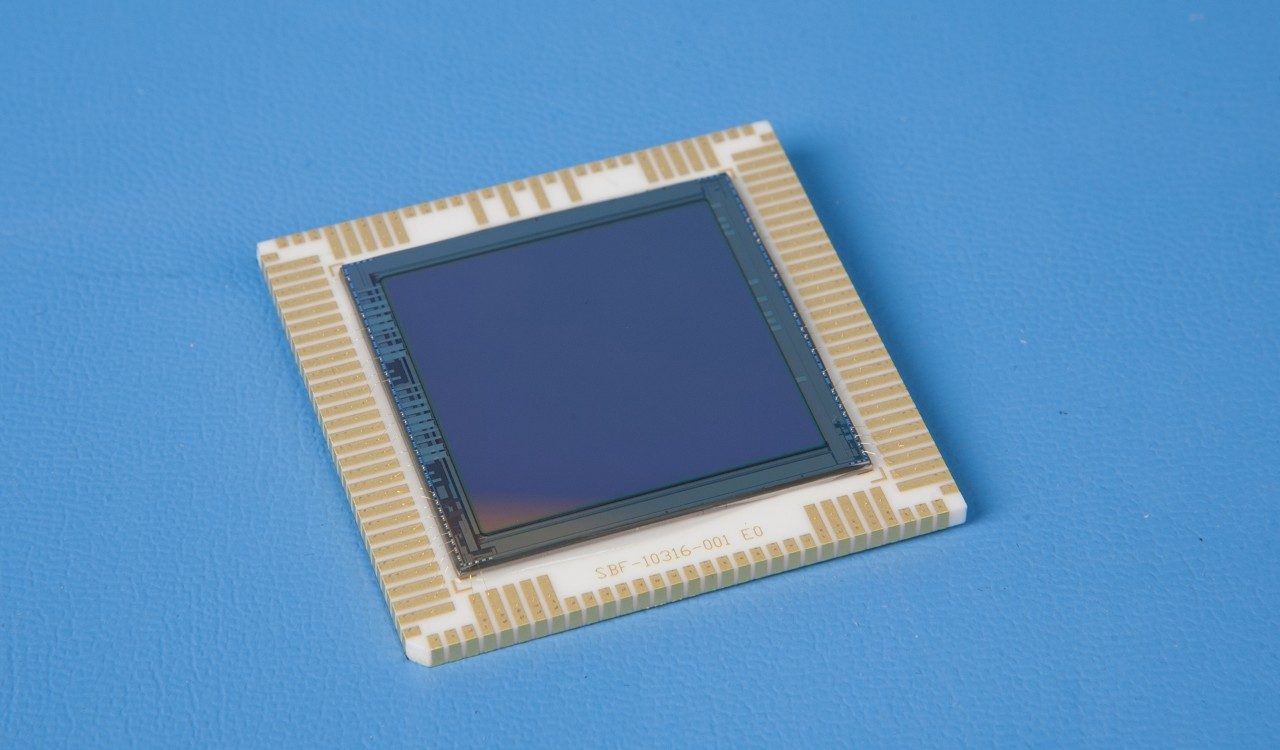

Santa Barbara Focalpane makes high-resolution FPAs for land-, air- and space-based systems. An FPA is a light-sensing device that generates infrared imagery.
Santa Barbara Focalpane makes high-resolution FPAs for land-, air- and space-based systems. An FPA is a light-sensing device that generates infrared imagery.

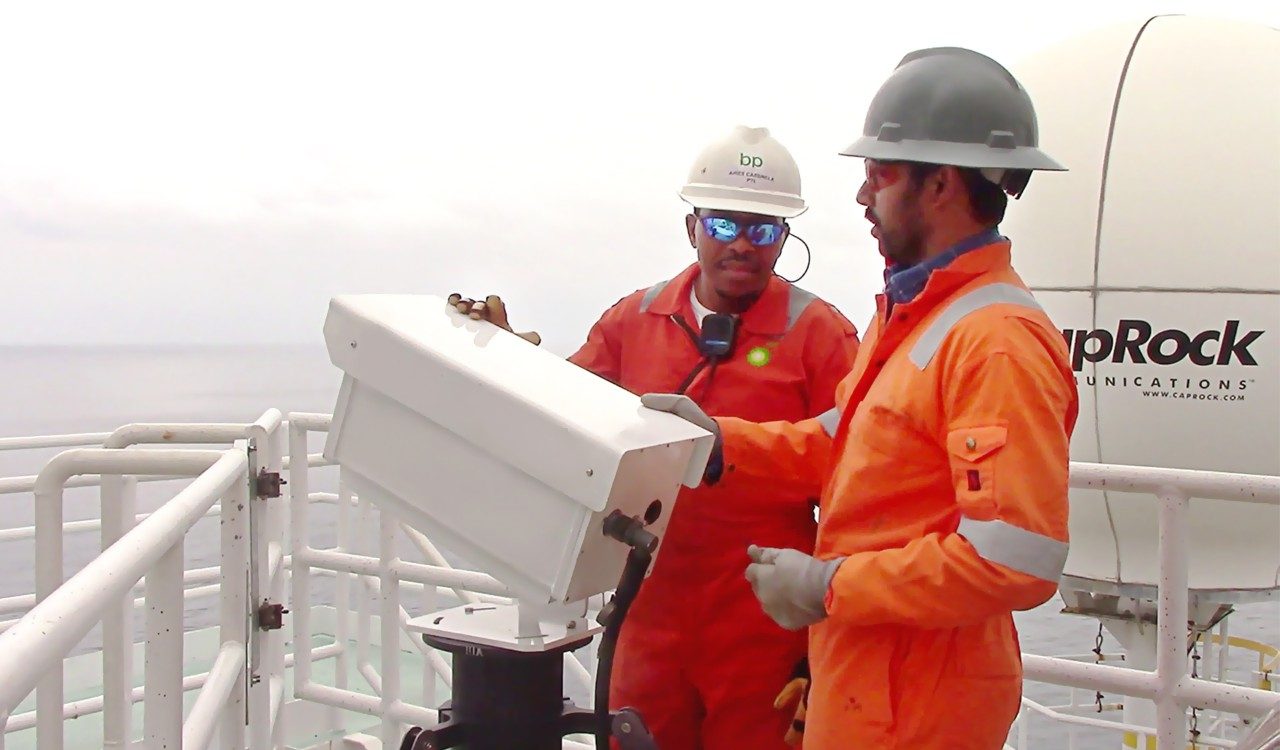

The multi-spectral VISR flare monitor camera, powered by an SBF FPA, is helping petroleum companies like BP monitor emissions at remote sites around the world. Photo courtesy of BP.
The multi-spectral VISR flare monitor camera, powered by an SBF FPA, is helping petroleum companies like BP monitor emissions at remote sites around the world. Photo courtesy of BP.

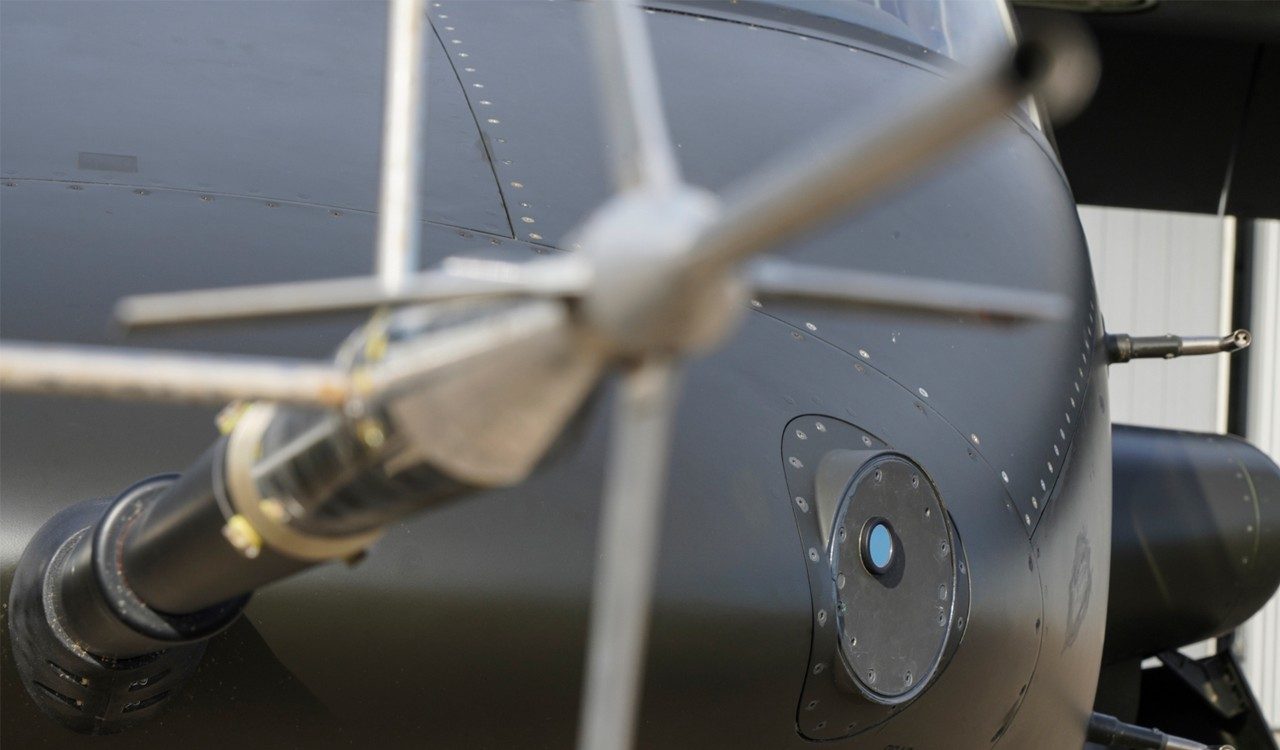

An SBF FPA is at the core of  Lockheed Martin’s Pilotage Distributed Aperture Sensor (PDAS) sensor. PDAS is the first tactical installation of a multi-functional DAS system for Army aviation. Photo courtesy of Bell.
An SBF FPA is at the core of  Lockheed Martin’s Pilotage Distributed Aperture Sensor (PDAS) sensor. PDAS is the first tactical installation of a multi-functional DAS system for Army aviation. Photo courtesy of Bell.

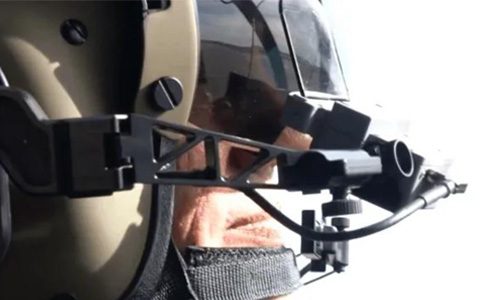

Lockheed Martin's 360-Degree Pilot Visual System Completes First Flight On Bell V-280 Valor

An SBF FPA is at the core of  Lockheed Martin’s Pilotage Distributed Aperture Sensor (PDAS) sensor. PDAS is the first tactical installation of a multi-functional DAS system for Army aviation. Video courtesy of Bell.
