Sensor Cores

Big Sensor Performance in Compact, Low-Cost Packages   ___



For over 30 years, Santa Barbara Focalplane (SBF) has led the industry in designing and producing the infrared (IR) and multispectral sensor technologies that guide the world’s most advanced platforms operating on and above the Earth—from unmanned drones and super-sonic tactical fighters to satellites in high orbit.

Our single, multi-band and multi-spectral sensor core subsystems are integrated into higher-level systems such as gyro-stabilized imagers for air, ground and marine vehicles. Fielded systems carrying SBF sensor technology include the F-35 Lightning II Electro-Optical Targeting System (EOTS), the Sniper Advanced Targeting Pod (ATP) and the AH-1Z Viper Target Sight System.



Our proprietary nBn material enables us to pack big sensor performance into a low-cost package that is small, light and low-power. Our compact 1.3 megapixel μLAD sensor core delivers the high-speed performance of a much larger cooled mid-wave infrared (MWIR) camera, including real-time high dynamic range, electronic stabilization and hostile fire indication.

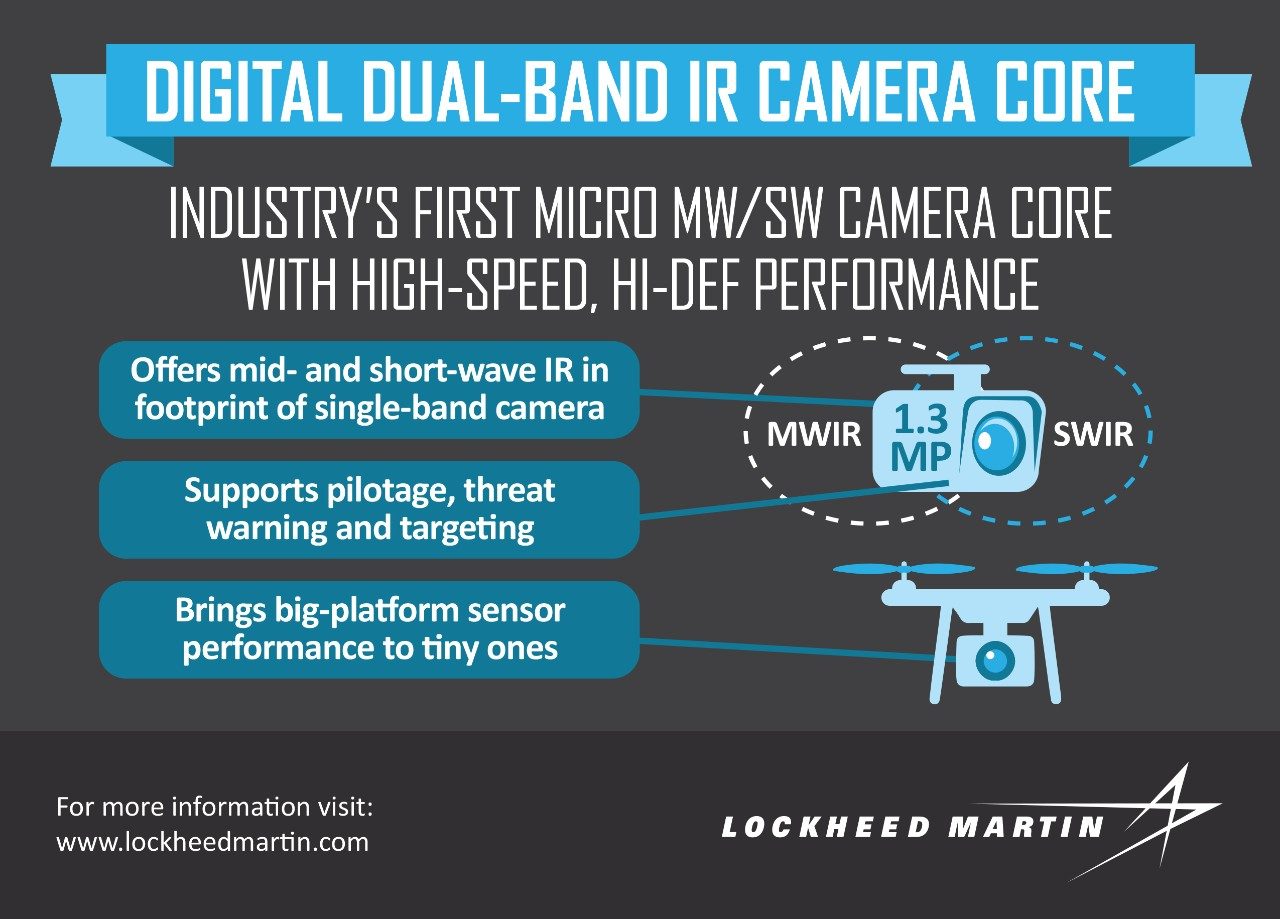

Digital Dual band Camera Core



Hummingbird color design is a registered trademark of Lockheed Martin Corporation. All Rights Reserved.



Stay Informed: The Latest News on SBF’s Sensors and Camera Cores   ___
Oct 31, 2019
Press Release
Once the exclusive domain of the military, infrared imagers are now taking commercial applications by storm, thanks to lower prices and better technology.
Sensor and Camera Core Photos and Videos   ___

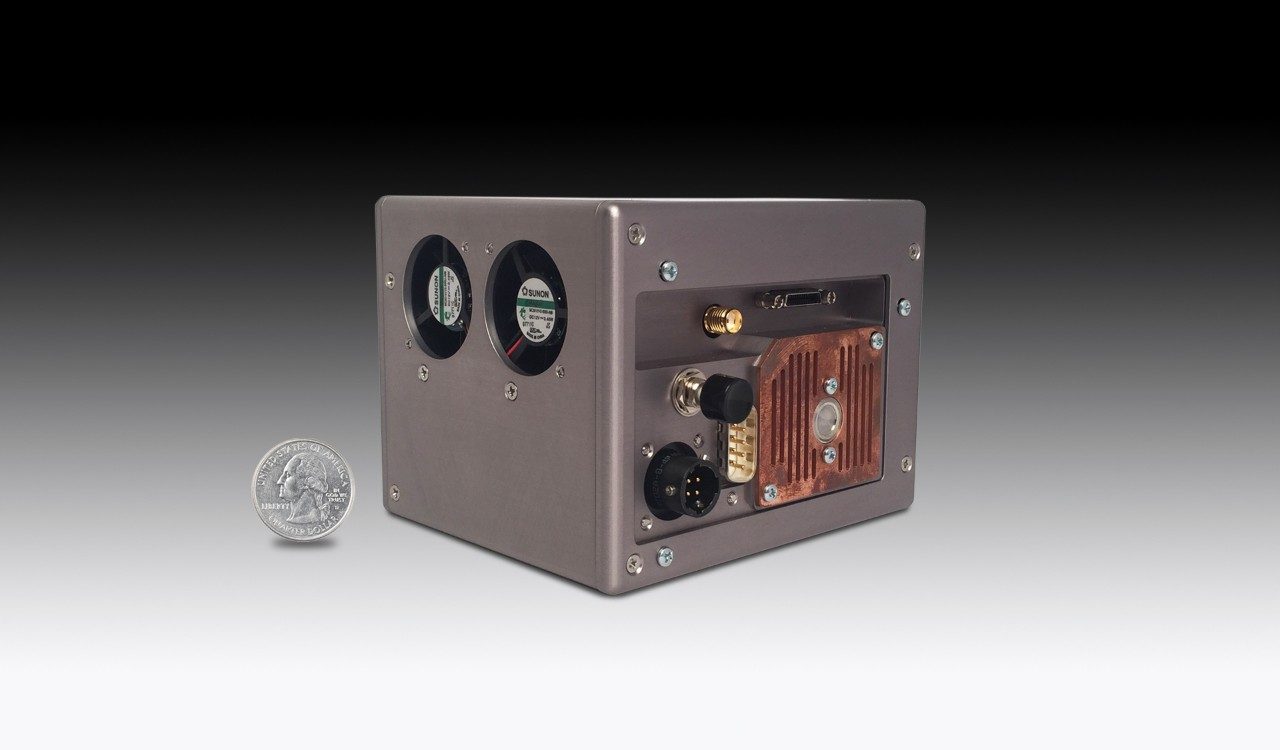

uLAD Camera back

The compact µLAD sensor brings delivers eye-watering short- and long-wave infrared imagery in a micro package that is small, light and low-power.

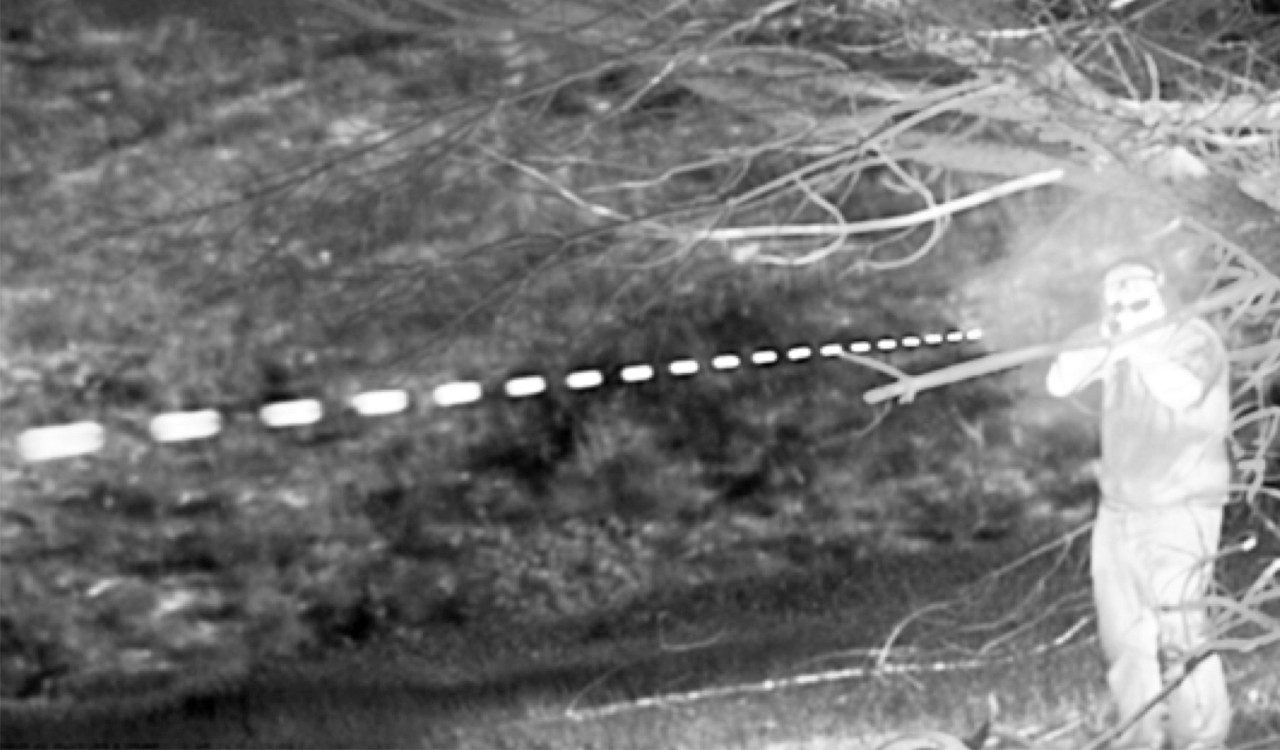

Bullet Tracking

The μLAD sensor’s high frame rate enables high-speed, real-time image bullet tracking.
Focal Plane Arrays
Integrated Dewar Cooler Assemblies



Sniper is registered in the U.S. Patent and Trademark Office. All Rights Reserved.
